Boo's stock
Moderator: Excalibur Marketing Dude
Re: Boo's stock
Why did you come back from Texas so soon? It's still winter up here. I'll bet it's already starting to look like spring down there. Take care of that cold! Gary
-
- Posts: 4791
- Joined: Tue May 19, 2009 8:21 am
- Location: chilton Wi.
Re: Boo's stock

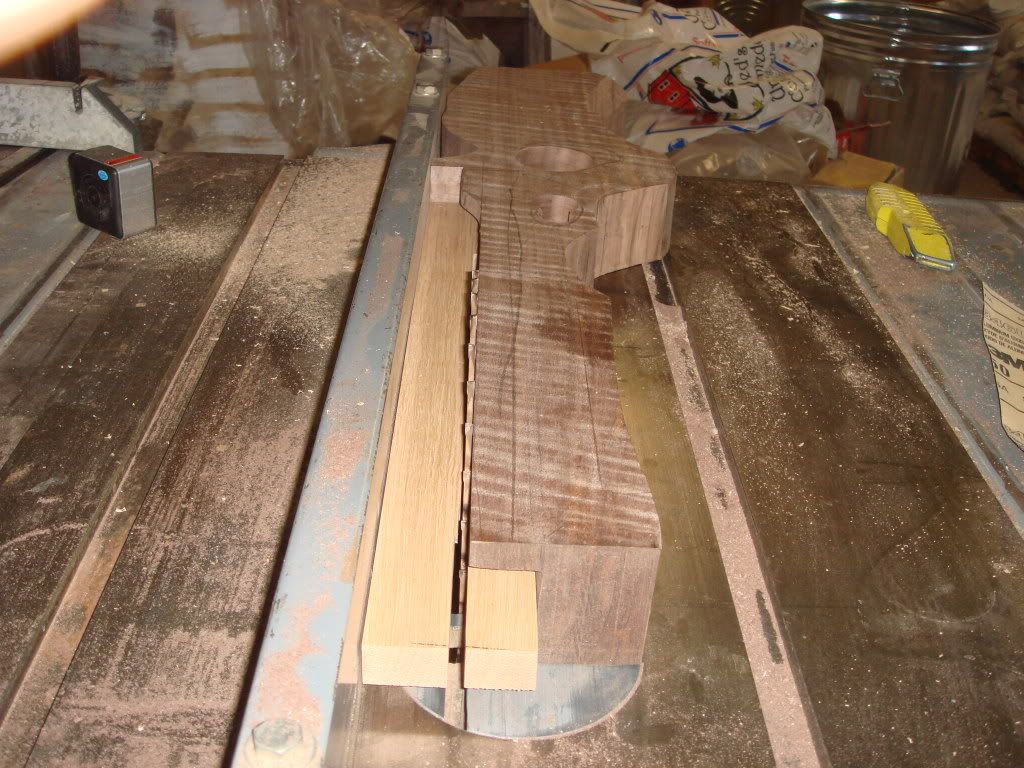

Finally getting better. OK. The first photo is the way I make sure the top of the stock is parrallel to the rail.

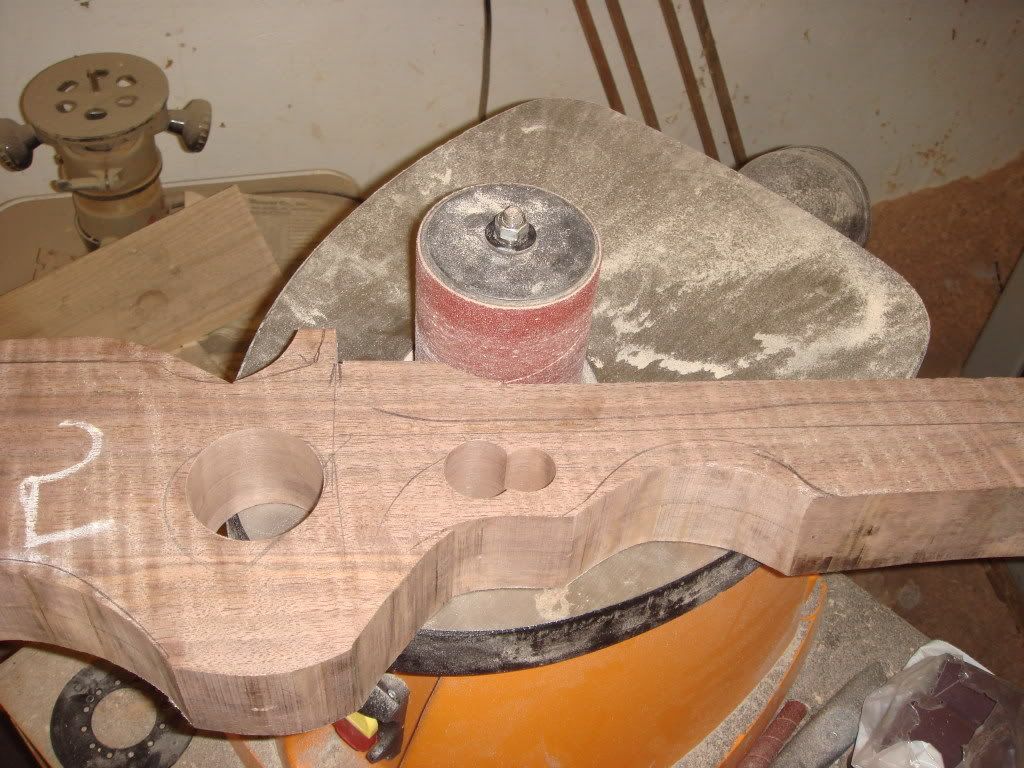

This photo is of using a spindle sander to square up the curved part of the top of the rail.

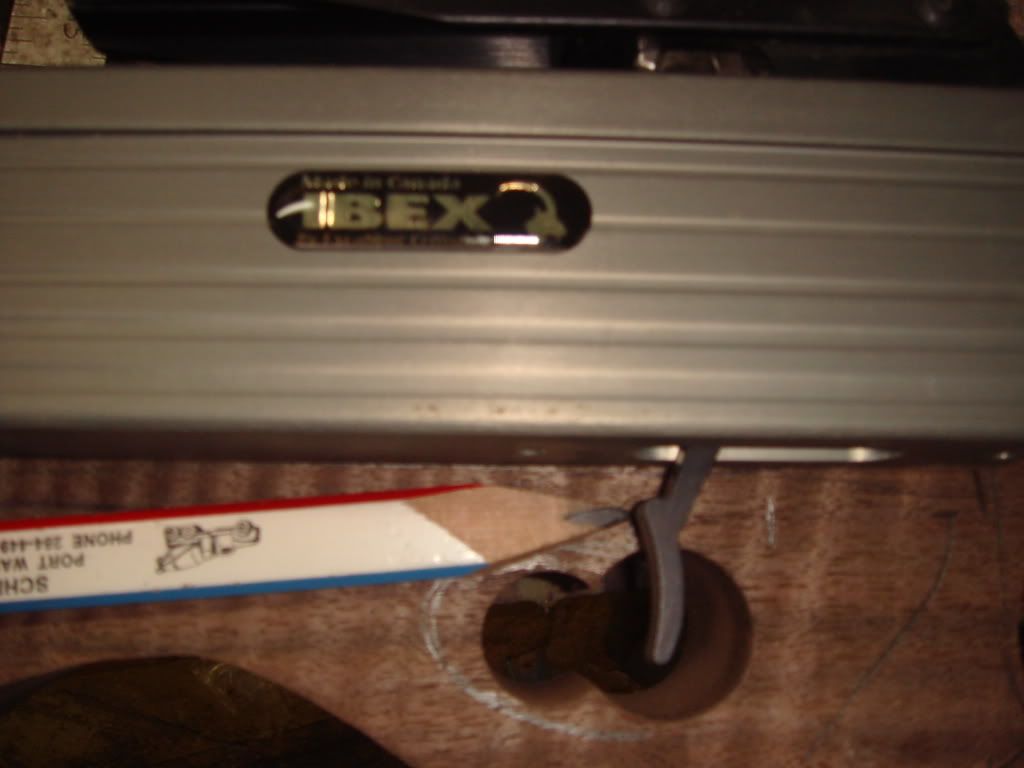

This photo is of locating the trigger using the crossbow rail butted against the butt end of the stock rail. (trigger relaxed)

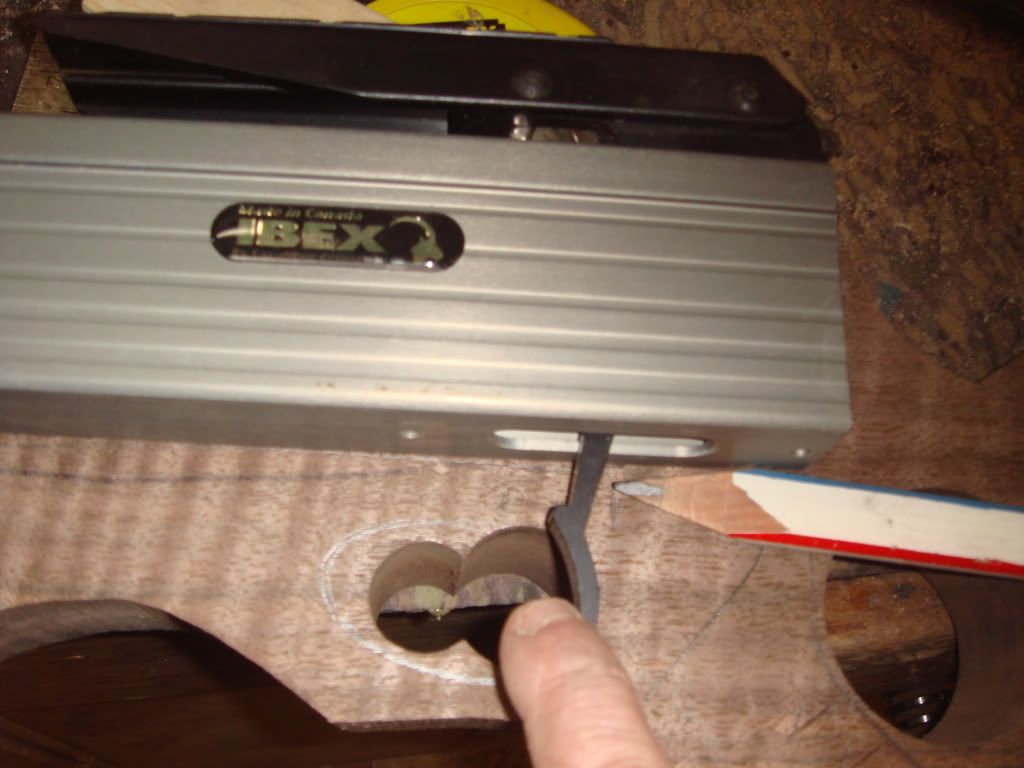

The last pic is the trigger engaged which would be the butt end of the trigger slot. Just square the marks around to the inside of the rail and drill out the trigger slot.
This photo is of using a spindle sander to square up the curved part of the top of the rail.
This photo is of locating the trigger using the crossbow rail butted against the butt end of the stock rail. (trigger relaxed)
The last pic is the trigger engaged which would be the butt end of the trigger slot. Just square the marks around to the inside of the rail and drill out the trigger slot.
Re: Boo's stock
Mike, you are just amazing. It is so cool to watch my stock progress!
Some people just like stepping on rakes
- onebigskittle
- Posts: 2041
- Joined: Tue Sep 21, 2010 1:08 am
- Location: Keysville Virginia
Re: Boo's stock
Without QuestionBoo wrote:Mike, you are just amazing. It is so cool to watch my stock progress!
Re: Boo's stock
Hey Mike, I want to do an oil finish. Do you or know or anything about boiled linseed oil/tung oil/Deftoil Danish Oil Finish or any others? Any opinions? http://www.leevalley.com/en/wood/Search.aspx?action=n
Does anyone have an opinion?
Does anyone have an opinion?
Last edited by Boo on Tue Mar 01, 2011 8:55 am, edited 1 time in total.
Some people just like stepping on rakes
Re: Boo's stock
B.L.O. is a nice finish that you can touch up without removing old finish first....i apply it with a fine plastic scotch brite pad equal to 0000# steel wool....my maple T/C stock was done in B.L.O. with 12 coats and i haven't needed to touch it up since 06 .........bob
....
....
exocet 200. STS dampers.
boo string and trigger work.
munch mount quiver mount.
125 gr slick trick magums.
2" blazers on 2117 XX75 w/ brass inserts.
boo string and trigger work.
munch mount quiver mount.
125 gr slick trick magums.
2" blazers on 2117 XX75 w/ brass inserts.
Re: Boo's stock
I've used BLO for years. I cut it 50/50 with turpentine. I sand the first two coats right into the wood with 320 paper, wiping off the excess in a couple of hours. The bad part is it takes a lot longer to dry between coats than most other finishes. You have to make sure the previous coat is oxidized before putting on another or you will have a real mess. I built a box 12" X 12" X 5' tall and put two 40 watt lightbulbs in it. I hang the wet stock in the box and it really speeds up drying. Temp. in the box gets to 95°.
I used Tru-Oil on the last stock I made and wished I would have used BLO. You will get a darker finish with BLO with good contrast between light and dark wood. Gary
I used Tru-Oil on the last stock I made and wished I would have used BLO. You will get a darker finish with BLO with good contrast between light and dark wood. Gary
-
- Posts: 6989
- Joined: Thu Oct 19, 2006 12:16 pm
Re: Boo's stock
I used Cabot's Spar Varnish in a Satin finish. The Spar Varnish was the overall recommendation from several folks. I chose the Satin because I didn't really want the "real shinny" finish. This if tough stuff . . .UV protection & marine durability. I'm hoping it keeps the stock looking brand new for years to come . . .even when I use it as my #1 hunting weapon. Rain, snow, sleet . . .or hot Georgia sunshine.
If Mike adds any of the orange wood, then you will want UV protection for it.
So far, so good. But, I only have one season under it's sling.
THAT STOCK IS LOOKING TOO GOOD . . .stock envy . . .
If Mike adds any of the orange wood, then you will want UV protection for it.
So far, so good. But, I only have one season under it's sling.
THAT STOCK IS LOOKING TOO GOOD . . .stock envy . . .
I'd rather wear out than rust out.
Perception trumps intention.
2006 Exomax w/Agingcrossbower Custom Stock
20" Easton Powerbolts w/125gr Trophy Ridge Stricknines & 2"Blazers
Boo Custom Strings
2006 Vixen
Perception trumps intention.
2006 Exomax w/Agingcrossbower Custom Stock
20" Easton Powerbolts w/125gr Trophy Ridge Stricknines & 2"Blazers
Boo Custom Strings
2006 Vixen
-
- Posts: 4791
- Joined: Tue May 19, 2009 8:21 am
- Location: chilton Wi.
Re: Boo's stock
Sorry, got to late, pics in the morning. Good night.
Re: Boo's stock
Have done linseed oil on a gun stock before rub it in let it dry and repeat several times.
Turned out pretty good
Turned out pretty good
Tenpoint Matrix
-
- Posts: 4791
- Joined: Tue May 19, 2009 8:21 am
- Location: chilton Wi.
Re: Boo's stock

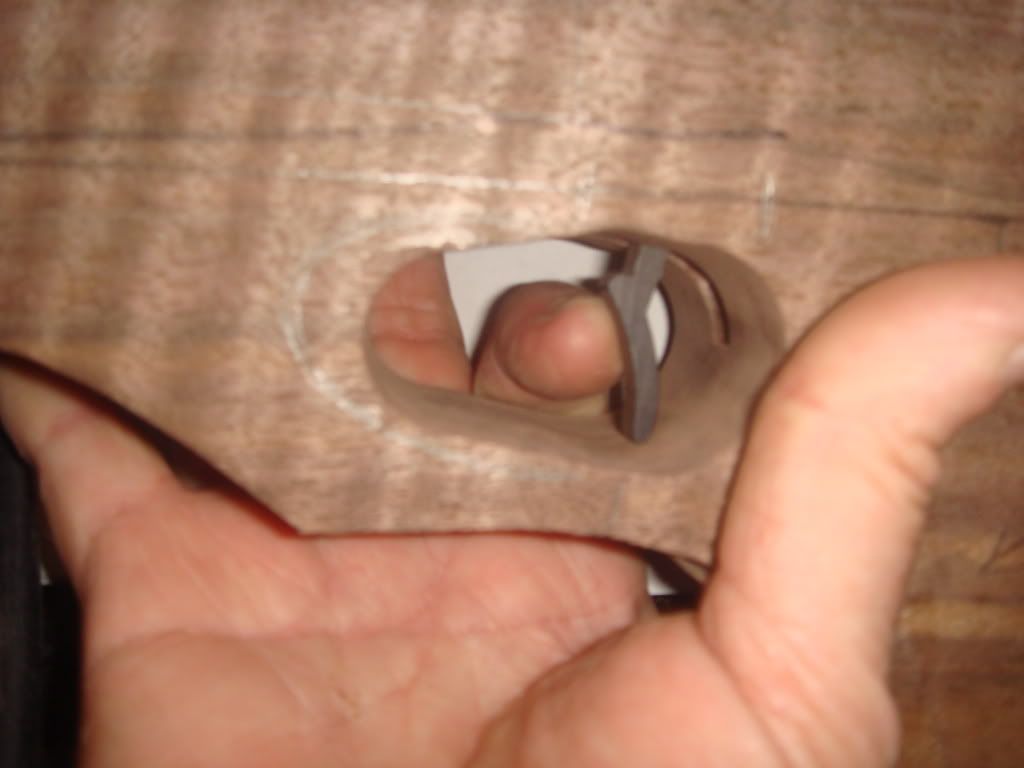

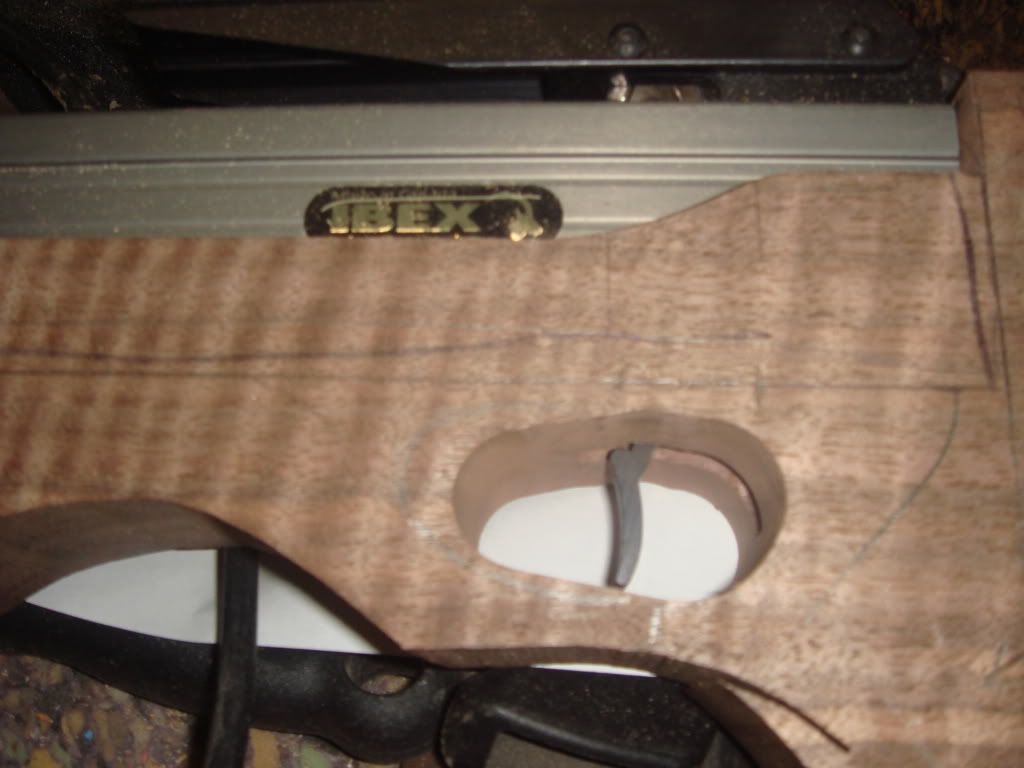

This pic is of the trigger hole finished out so the trigger has good travel
This is something that Don wants to cure an overheated rail. He shoots a lot.

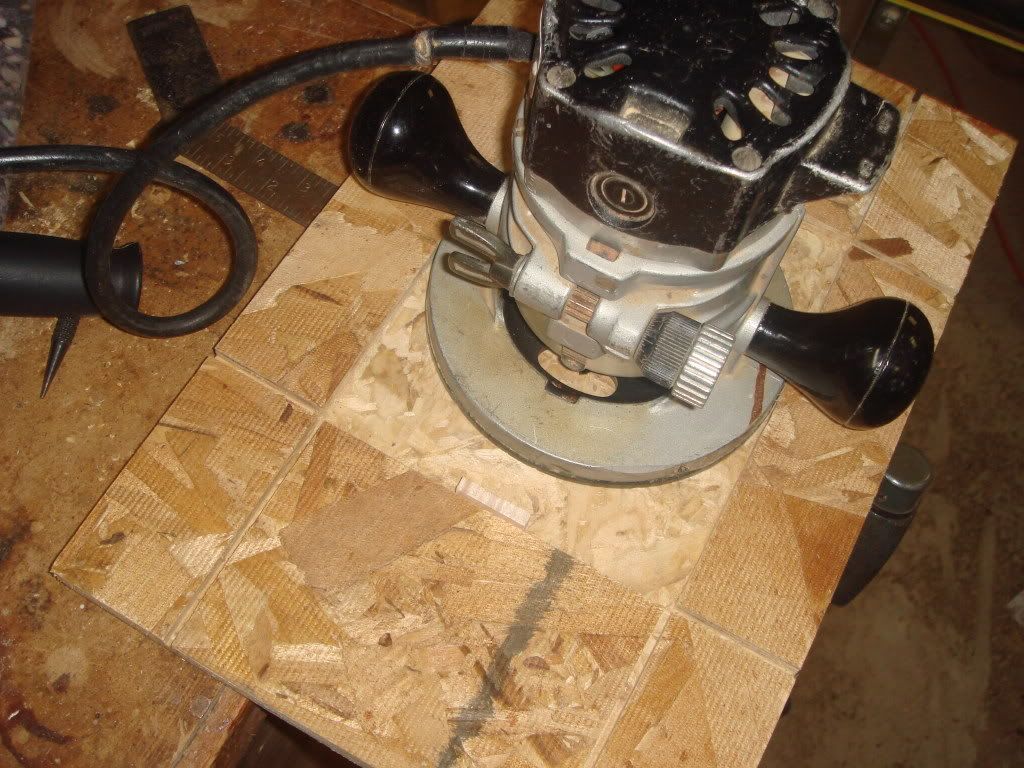

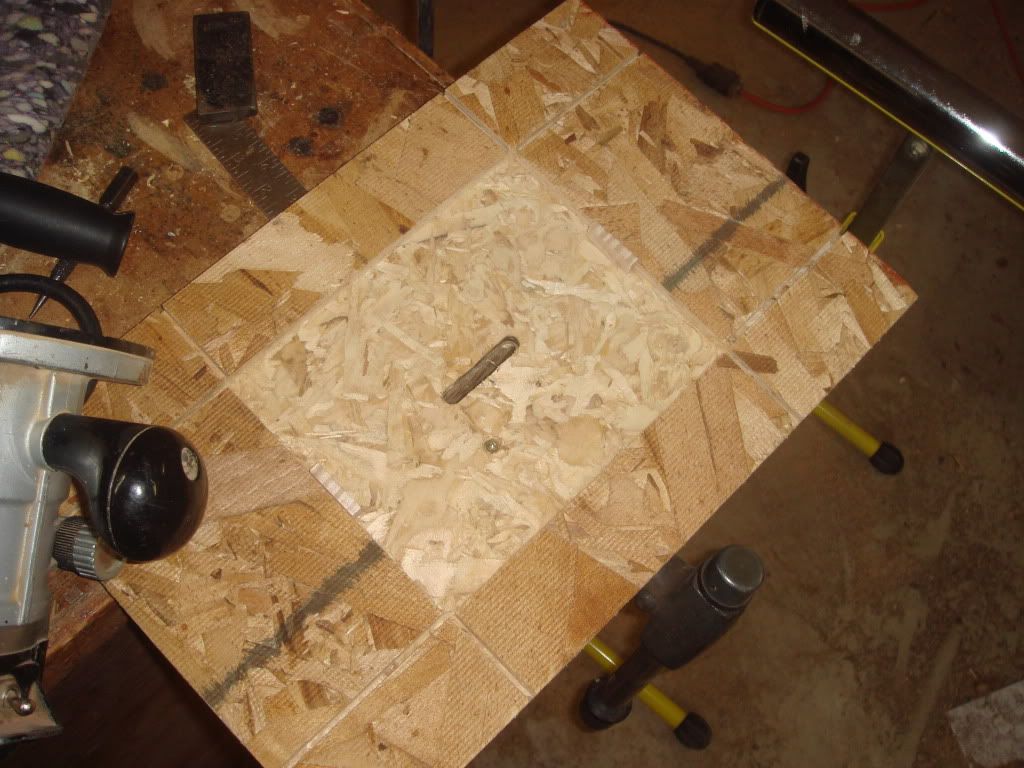

These three pics are of a jig I threw together to make it easlier to make the slots.
next pics of how it turns out.Thanks for looking; Mike
This is something that Don wants to cure an overheated rail. He shoots a lot.
These three pics are of a jig I threw together to make it easlier to make the slots.
next pics of how it turns out.Thanks for looking; Mike
Re: Boo's stock
You are a true craftsman MIke. This work in process is very informative and makes a person anxious to see the next step(s)
You sure you can skin griz, pilgrim??
Life is too short to carry an UGLY knife!
Life is too short to carry an UGLY knife!
Re: Boo's stock
This is something that Don wants to cure an overheated rail. He shoots a lot.
Overheating a rail............. LOL............That's funny!!!!!!!!!!! Don't think I could load arrows that quick let alone cock it!!!! Guess being under 6 feet tall has it's advantages. LOL
Overheating a rail............. LOL............That's funny!!!!!!!!!!! Don't think I could load arrows that quick let alone cock it!!!! Guess being under 6 feet tall has it's advantages. LOL
- Limbs and Sticks
- Posts: 3206
- Joined: Mon Sep 01, 2008 7:13 pm
- Location: Colonial Beach, Virginia, US
Re: Boo's stock
Seeing a true craftsman at work, [priceless]
Wes
Wes
"Maxine"
1.75x5 Burris scope
Boo string
STS
Feathered easton 2020's
Magnus stingers
1.75x5 Burris scope
Boo string
STS
Feathered easton 2020's
Magnus stingers
-
- Posts: 4791
- Joined: Tue May 19, 2009 8:21 am
- Location: chilton Wi.
Re: Boo's stock

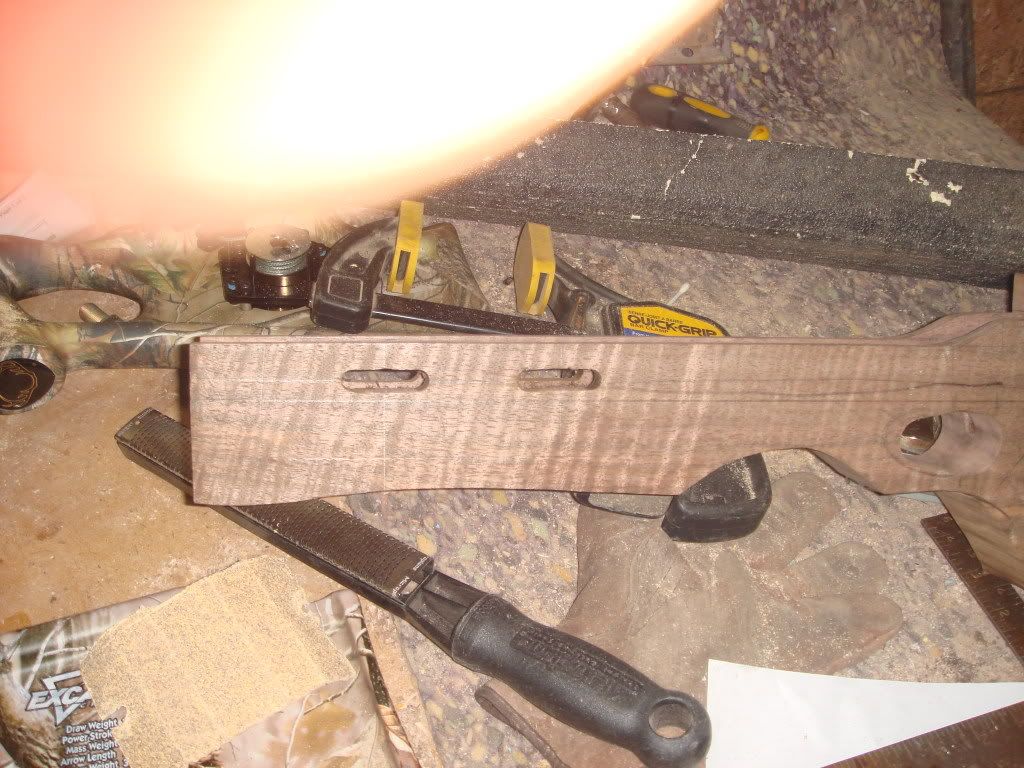

Stock is short so I made just two slots. Don will have to shoot less to keep the rail from overheating
