frisky deer carrier (5 pictures)

[frisky]

In my post "frisky scores again" I was asked to show some pictures of my home built carrier.

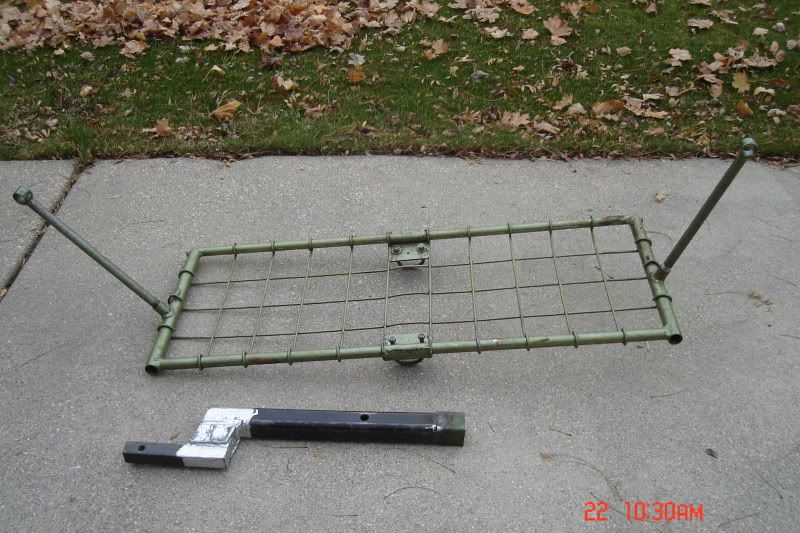

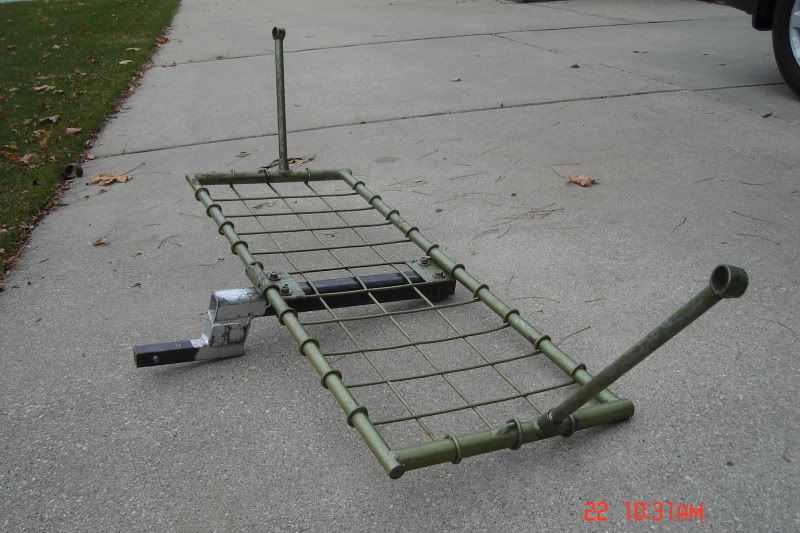

The platform is 17 x45 inch. It is built of tubing I had at home. The mesh screen was HD concrete reinforcing screen. It is 1/4 thick and bent around the tube frame.

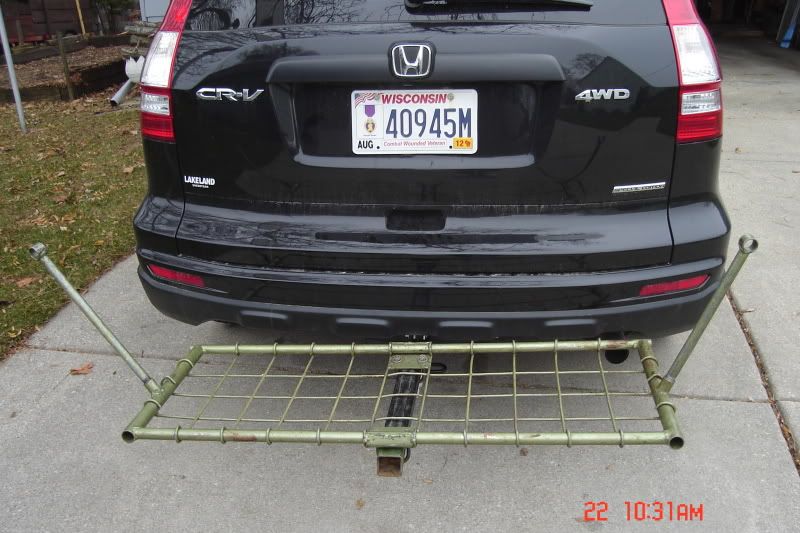

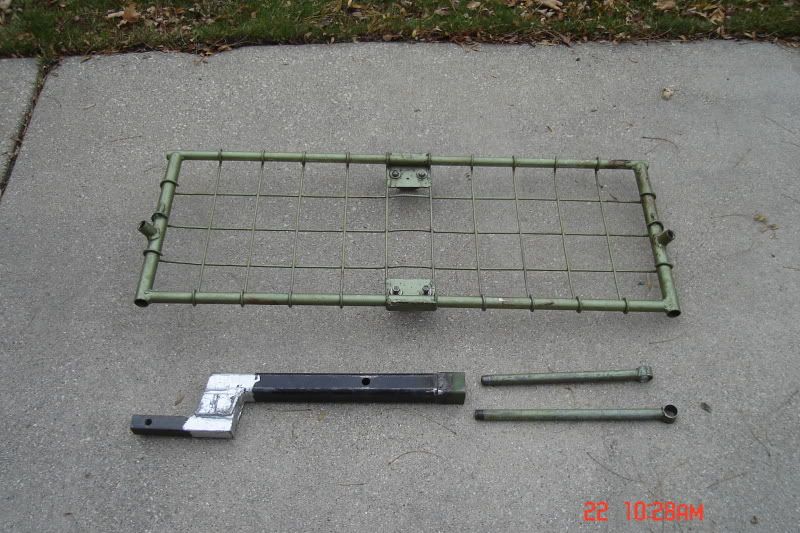

The frame is held onto the receiver 2" tube by HD muffler clamps bent square. I welded it all together, added some 1/2 pipe couplers to the frame ends. The 2 pipes that are screwed into the couplers are about 15 in long with rings welded on the ends for rope to go though. In the last pict the antlers and rear legs are tied to them. I keep this disassembled inside the car. I made a "T" wrench to tighten the nuts of the clamps.

[Dereck]

Very ingenious
I always like to see ideas on how people make their own version of expensive accessories.

I may have to see if I can rig something for my Echo wait can you even get a trailer hitch for an Echo

[ONEOFAKIND]

Thanks for the post. I like the idea about taking it apart for storage. Because it would be in the way for my back doors. If needed, quick assembly. Thanks again, Frank

[Boo]

Great thread!

[agingcrossbower]

Bill can make most anything from what I have seen. Talented man.

[bob1961]

kool idea ....i'll have to get my drag sled i made to haul deer/bear from the woods with........bob

....

[the elf]

Nice setup ! It was me that asked---necessity really is the mother of invention.

[j.krug]

I was gonna post a picture of my deer carrier but the wife doesn't like her picture taken!!

Sorry honey....just kiddin!

[Doe Master]

I was gonna post a picture of my deer carrier but the wife doesn't like her picture taken!!

Now that we have seen how she can shoot . You may have became her deer carrier .

[MarkMarine]

Frisky, that is real slick - I like it

[Big58cal]

Pretty slick! It's probably a good thing that I don't know how to weld. I get in enough trouble with everything else that I know how to do.

But ya' know, if you'd trade in that Honda and get a pickup, you wouldn't need something like that.

[j.krug]

I was gonna post a picture of my deer carrier but the wife doesn't like her picture taken!!

Now that we have seen how she can shoot . You may have became her deer carrier .

You may be right Kevin!
